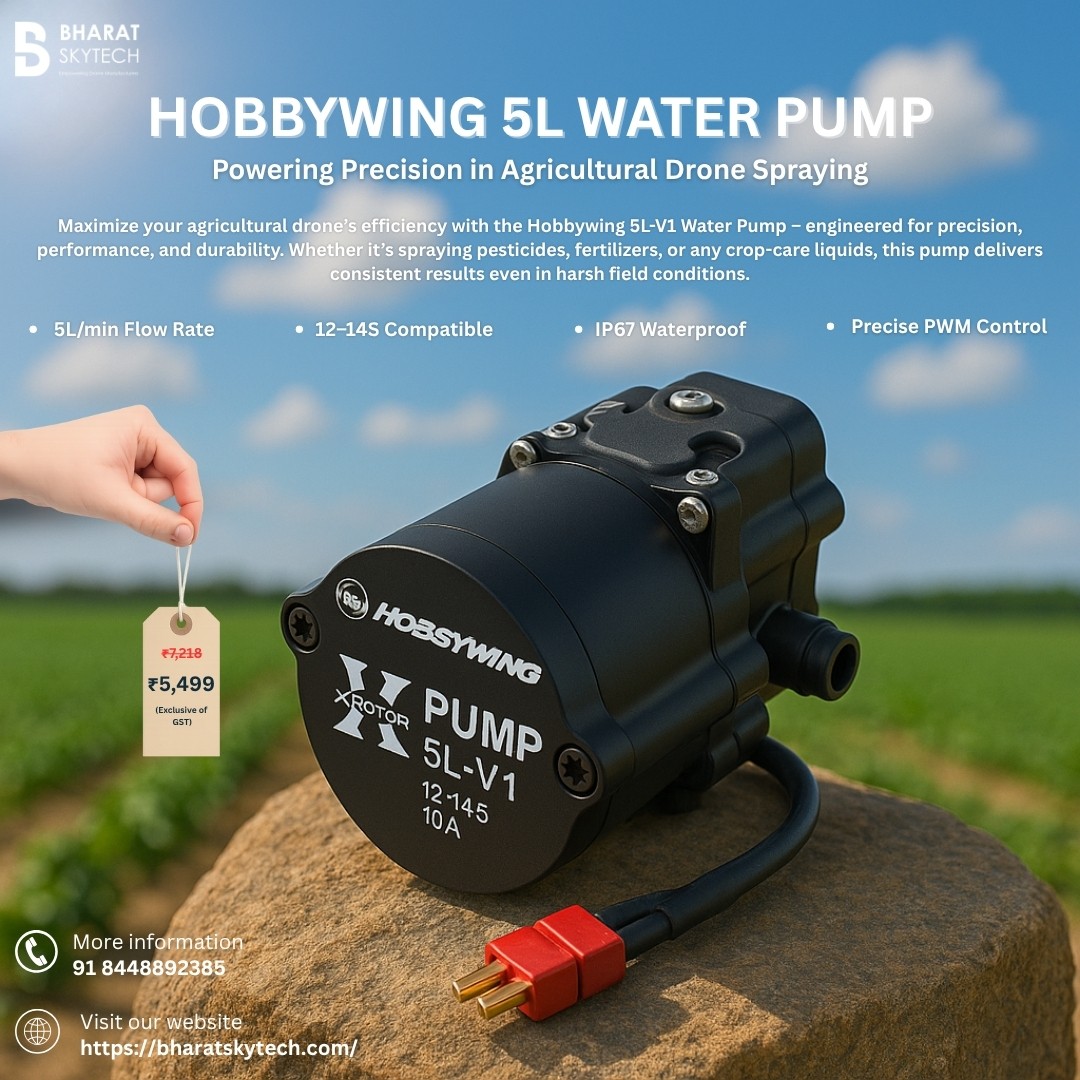

Hobbywing Water Pump 5L Brushless - Agriculture Drones Components

• Key Features:


  • High Flow Rate: Capable of delivering 5 liters per minute, ensuring efficient and effective spraying.
  • Wide Voltage Range: Operates on 12-14S (DC44-60.9V), providing versatility for different drone setups.
  • Energy-Efficient Power Consumption: With a 120W rated power and working current of ≤2.5A, the pump is designed to maximize efficiency while minimizing energy use.
  • Robust Build: The IP67 protection class ensures full waterproofing, protecting the pump in wet agricultural environments and increasing its longevity.
  • Compact & Lightweight: Weighing just 388g and measuring 123x76x52mm, the pump is easy to integrate into drone systems without adding excessive weight.
  • PWM Control: Precise control with an operating PWM width of 1050-1950μS for adjustable flow rates during drone operation.

  Specifications:

  • Working Voltage: 12-14S (DC 44-60.9V)
  • Rated Power: 120W
  • Working Pressure: 0.35Mpa
  • Working Current: ≤2.5A
  • Flow Rate: 5L/min
  • Protection Class: IP67 (Waterproof)
  • Weight: 388g (Approx. without wire 338g)
  • Dimensions: 123x76x52mm
  • Operating PWM Width: 1050-1950μS

Applications:

Suitable for agricultural drones used in crop spraying, pesticide application, and liquid fertilizer distribution. Its efficient flow rate and easy integration make it an essential component for boosting drone spraying accuracy and performance.
